KYO - Kyocera
KYO - Kyocera

External Threading Inserts 16ER

Identifying order number: 16ERA55-TF PR1115

Product name: TJY18160

DIN4000-77-101 - Three-edged thread / grooving cutter body Three-edged thread / grooving cutter body SKJ101

keyboard_arrow_right

More

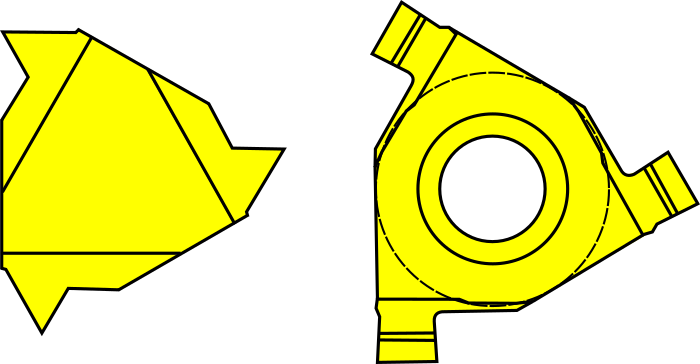

type-helpImage Tool class graphic - ISO13399-Lay-down threading insert, triangle shape, three cutting edges, one tooth
Geometric data
202-08 (ISO)
INSCPRFTHP (GTC)
SKJ101 (DIN4000)
Description Value
J21 Identifying order number 16ERA55-TF PR1115
J22 Product name TJY18160
J3 Company code KYO - Kyocera
NSM Standard number of properties layout DIN4000-77
BLD Tool style code 101
A1 Profile form 8
A5 Thread form type W
A71 Threads per inch minimum 40
A72 Threads per inch maximum 16
B5 Profile included angle 55 Degree
B6 Profile angle right hand 27.5 Degree
B7 Profile angle left hand 27.5 Degree
C8 Spot radius 0.002362 in
D7 Insert rake angle 10 Degree
E41 Cutting edge condition code E - Rounded
E7 Insert hand R - Right
E9 Chip breaker manufacturers designation TF
F1 Thread type A - External thread
F2 Cutting edge count 3
F3 Tooth count 1
F4 Thread profile type T - Partial profile
G3 Inscribed circle diameter 0.375000 in
G4 Insert thickness total 0.144882 in
G5 Insert mounting style code 4 - Counter bore for screws with taper angle from 70° to 90°
G6 Fixing hole diameter 0.157480 in
G7 Insert thickness 0.138189 in
G8 Insert included angle 60 Degree
H3 Grade manufacturer's designation PR1115
H5 Coating PVD
H6 Tipped cutting edge code S
Working process
No working processes available
Connection codes

J6 / J61 - connection code machine end Matching components

Manufacturer specific (DIN)
KYO-16ER
Speeds & Feeds
Order data
Accessories
